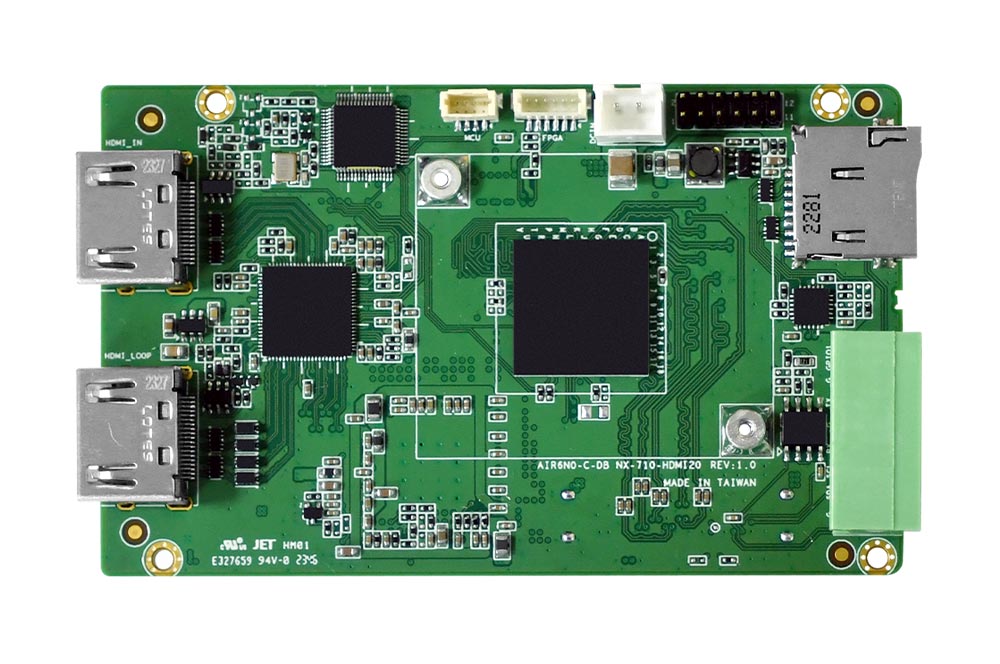

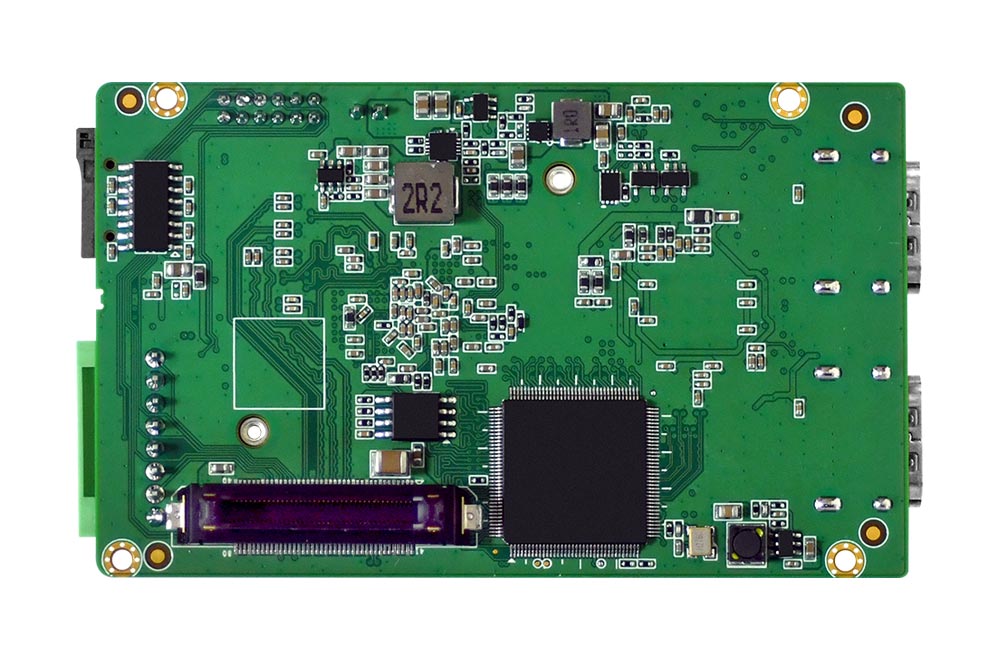

- Powered by NVIDIA® Jetson Orin™ NX up to 100 / 70 TOPS
- Business Card Size (90mmx55mm)
- 1xHDMI2.0 In & Loop
- 1xUSB3.2 Gen2
- 1xMini DisplayPort
| CPU | Jetson Orin NX 8GB 6-Core Arm® Cortex®-A78AE v8.2 64-Bit CPU 1.5MB L2 + 4MB L3 |
|---|---|
| Jetson Orin NX 16GB 8-Core Arm® Cortex®-A78AE v8.2 64-Bit CPU 2MB L2 + 4MB L3 |
|
| GPU | 1024-Core NVIDIA Ampere Architecture GPU with 32 Tensor Cores |
| API Performance | NVIDIA Jetson Orin™ NX 8GB, 70 TOPS |
| NVIDIA Jetson Orin™ NX 16GB, 100 TOPS | |
| System Memory | NVIDIA Jetson Orin™ NX 8GB, 8GB LPDDR5 |
| NVIDIA Jetson Orin™ NX 16GB, 16GB LPDDR5 |
| Storage | Supports External NVMe |
|---|---|
| Display Interface | 1xMini DP1.4 |
| Ethernet | 1xRJ45 for 10/100/1000Mbps Ethernet DHCP Client |
| Expansion Slot | M2 1xM2 2280 M Key PCIe Gen4x4 Slot 1xM2 2280 M Key PCIe Gen4x1 Slot |
| USB | 4xUSB3.2 Gen2 (Type-A) 1xUSB3.2 Gen1 (Pin Header) 1xUSB3.2 Gen1 (Pin Header, Contains USB3.0 Signal Only) |
| MIPI | 8xMIPI CSI Lanes (Support MIPI Camera, Capture Card) |
| Audio | 1xLine In (3.5mm or Pin Header) 1xLine Out (3.5mm or Pin Header) |
| Perherial Communication | 1xRS232 (Phoenix Connector or Pin Header) 1xRS485 (Phoenix Connector or Pin Header) 4xGPIO (Pin Header) 3xI2C (Pin Header) |
| Misc. Features | Firmware Upgradable AutoPower (Pin Header) |
| IP Camera | 4xRJ45 for 10/100/1000Mbps Ethernet with PSE Support (4x15W,802.3af) |
|---|---|
| PSE Power Supply | 4x15W (IEEE802.3af) or 4x30W (IEEE802.3at) |
