| CPU / Chipset | FCBGA1744 12th generation Intel® Core i7/i5/i3 and Celeron processor (35W max.)/ Soc |
|---|---|
| Graphic | Intel® Iris Xe Graphics (i7/i5 CPU) / Intel® UHD Graphics (i3 CPU) |
| RAM | Two 4800 MHz DDR5 SODIMM socket support dual Channel, non-ECC, up to 64GB |
| OS Support | Optional Win 10 IoT Enterprise LTSC 64 bit, Windows 11 IoT Enterprise GAC 64 bit |
| Storage | 1 x M.2 (M Key, 2280) with PCIe x4 for SSD 1 x 2.5" SATA3 HDD/SSD drive bay |
| Expansion | 1 x PCI-E x8 expansion slot (PCI-E x4 Signal) 1x M.2 E key 2230 |
| Display Size | 21.5" 16:9 |
| Display | 1920 x 1080 (Full HD), 16.7M colors, 178(H) / 178(V), 250 nits (Typ. Center point), CR:1000 : 1 (Typ) |
| Touch Screen | Full flat projective capacitive touch panel / Light Transmission: 85% ± 3% / Hardness: 6H pencil, pressure 750g/45° / Life: 100M times |
| WMP-22T IP0A (STD) | WMP-22T IP0B (ISO) | |
|---|---|---|

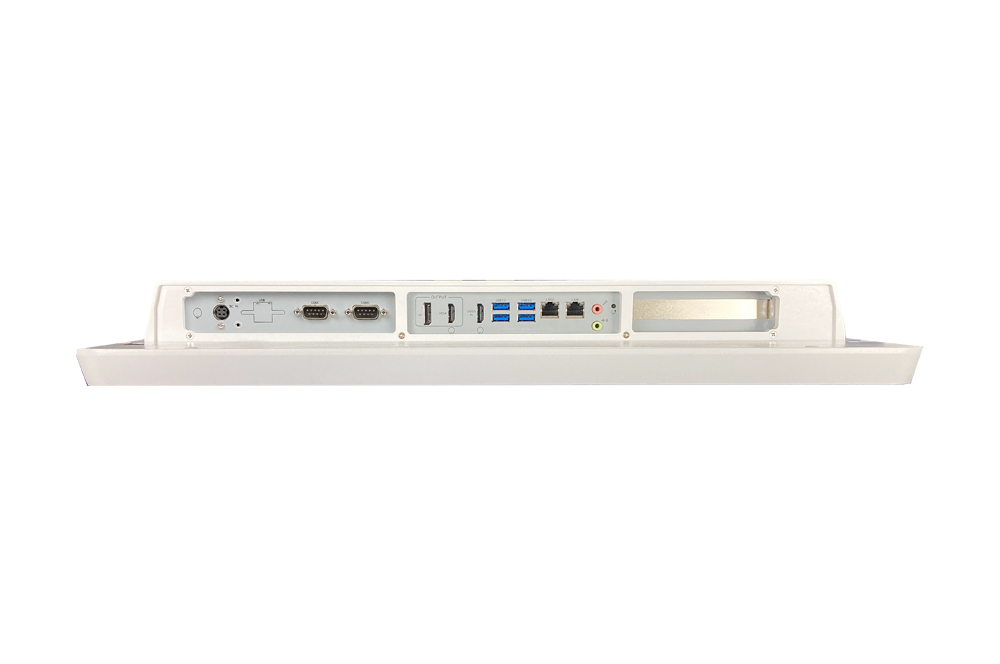

| USB | 4 x USB 3.2 gen 2 | 4 x USB 3.2 gen 2 |
| COM | 1 x RS232, 1 x RS232/RS422/RS485 | 1 x ISO RS232/RS422/RS485 |
| LAN | 1 x RJ45 1Gbps Intel® I219LM (AMT/Vpro) 1 x RJ45 2.5Gbps Intel® I226V |
1 x RJ45 1Gbps Intel® I219LM (AMT/Vpro) 1 x RJ45 2.5Gbps Intel® I226V 1 x ISO RJ45 1Gbps |
| Audio | 3.5mm phone jack connector * 2 (Line-out, Mic-In) | |
| Video Out | 1 x DP 1.4a / DP++,1 x HDMI 2.0b | |
| Video In | 1 x HDMI-in (without audio) | |
| Control Hot Key (R to L) | Battery LED Indicator; Power; Menu/Exit; Brightness; Video-In LCD On/Off; Clean Me; Programmable Function | |
| Cooling | Fanless |
|---|---|
| Power Adapter | AC input 100 ~240V / 47 ~ 63 Hz, External power adapter, 180W |
| Temperature | Operating Temperature: 0~35°C (IEC60068-2-78) / Storage Temperature: -20~60°C |
| Humidity | Operating & Storage:10 ~ 90%, non-condensing |
| IP Rating | Front: IP65, Rear: IP54 with cable cover attached |
| Housing | Rear: Aluminum Alloy Body / White (Touch) |
| Dimensions (Net) | 549.1mm (H) x 347.1mm (V) x 68mm (T) |
| Weights (Net) | 8.8 kg (w/o adapter & battery) |

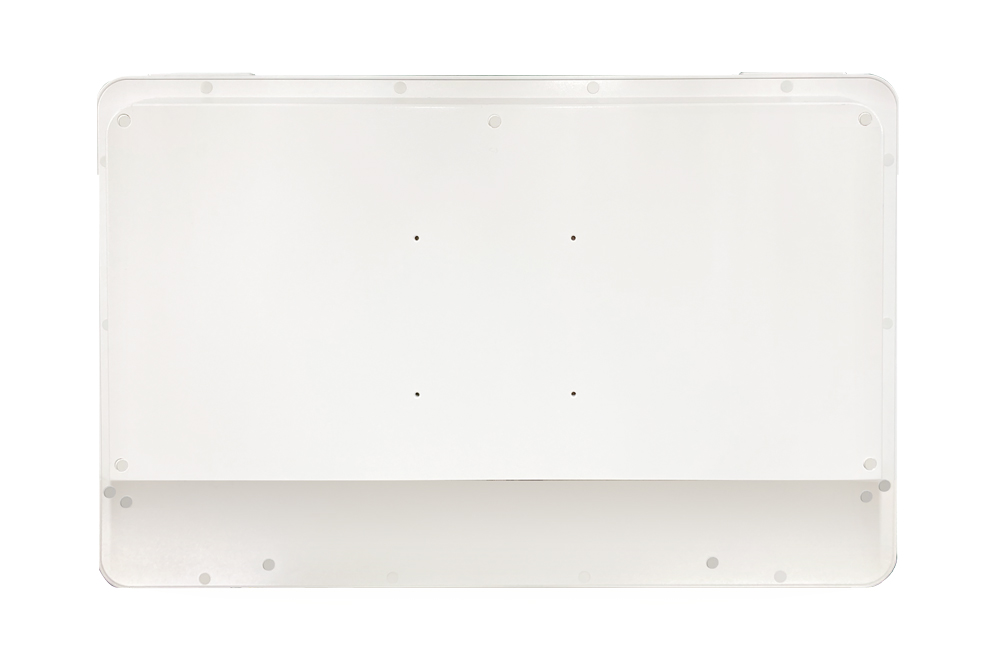

| Mounting | VESA 100 x 100 |
| Certification | FCC (part 18 Class B) / CE (EN 60601-1-2 :2015 ver. 4.1) / VCCI (2016-11, class B) UL(ES60601-1:2012 (V3.2) By Project / cUL (C22.2 No. 60601-1:2014 V3.2) By Project EN 60601-1:2006 + A11: 2011 + A1: 2013 + A12: 2014 Compliance By Project / ISO 14971 / IEC 62133 By Project |
