21.5" Medical Panel PC WMP-22P

WMP-22P

21.5" TFT-Color LCD Medical AIO Panel PC with Powerful Alder Lake CPU

Mobile Intel® Alder Lake U Core i CPU
The newest regulation EN 60601-1:2006 + A11: 2011 + A1: 2013 + A12: 2014 Compliance
21.5" FHD AHVA Diagnostic Panel w/ P-Cap Multi-Touch

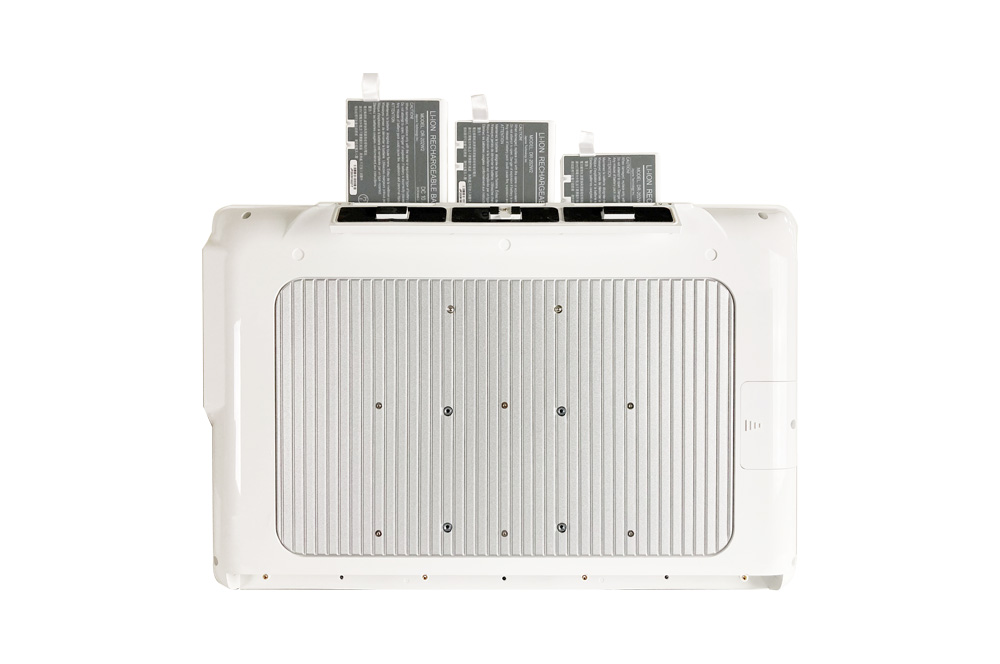

Optional Hot-Swappable Batteries X3; IP54 rear cover batteries x 1
Optional IP54 Rear w/Full Sealed Upside Housing Sku
Fanless Design with Reliable Thermal Solution
Dual storage M.2 NVMe SSD & 2.5" drive (w/ doggy door)
Hospital white Plastic Housing with Anti-bacteria Treatment
Battery Charger Station, 4KV Isolated I/O kit, DICOM GSDF Calibration & More Options for Diversified Applications
Support PCIex4 Expansion Slot

CPU / Chipset	FCBGA1744 Intel® 12th Gen. Core i7/i5/i3 & Celeron Processor (15W Max.) / Support Vpro by Core i7/i5 CPU
Graphic	Intel® Iris Xe Graphics (i7/i5 CPU) / Intel® UHD Graphics (i3 CPU)
RAM	Two 4800 MHz DDR5 SODIMM socket support dual Channel, non-ECC, up to 64GB
OS Support	Optional Win 10 IoT Enterprise LTSC, Win 11 IoT Enterprise GAC
Storage	1 x M.2 (M Key 2280) with PCIex4 for SSD Standard rear cover: 2.5" SATA3 HDD/SSD drive bay x 1 with doggy door IP54 rear cover: 2.5" SATA3 HDD/SSD drive bay x 1
Expansion	1 x PCIex4 (25W max.), 1 x M.2 E Key
Display Size	21.5” wide TFT-Color LCD (16:9)
Display	1920 x 1080 (Full HD), 16.7M colors (Ture 8 bit), 178(H) / 178(V), 250 nits (Typ. Center point), CR:1000: 1 (Typ)
Touch Screen	Projected Capacitive Multi-Touch Panel / Light Transmission: ≥ 85% / Hardness: 7H pencil, pressure 765g/45° / Life: 50000

	WMP-22P IP0A (STD)	WMP-22P IP0B (ISO)
USB	4 x USB3.2 gen II	4 x USB3.2 gen II 1 x ISO USB 2.0
COM	1 x RS232/RS422/RS485 1 x RS-232	1 x ISO RS232/RS422/RS485 1 x ISO RS-232
LAN	2 x RJ45 (1 x 1.0 Gbps, 1 x 2.5 Gbps)	2 x RJ45 (1 x 1.0 Gbps, 1 x 2.5 Gbps) 1 x ISO RJ45
Audio	1 x Line-out & 1 x Microphone-in (3.5mm phone jack)
Video	1 x DP1.4a, 1 x HDMI2.0, 1 x HDMI (video-in)
Speakers & Microphone	2 x 2-watt Speakers & Integrated Microphone (at Housing Bottom Side)
Reading light	Light bar x 2 (at housing bottom side)
Control Hot Key (R to L)	Battery LED Indicator, Power On/Off, Volume +/-, Brightness +/-, Reading Light, LCD Backlight On/Off, Clean Me, Function Key

	WMP-22P IP0A (STD)	WMP-22P IP0A (IP54)	WMP-22P IP0B (ISO)
Cooling	Fanless Design with External Heatsink
Battery Pack	Optional DR-202 Series, Li-ion Battery x 3, Hot Swappable	Optional DR-202 X 1, UPS Battery	Optional DR-202 Series, Li-ion Battery x 3, Hot Swappable
Power Input / Power Adaptor	DC-In x 1, DC 14-24V input/ AC input 100~240V / 47 ~ 63 Hz / DC output 24V, 180W
Temperature	Operating Temperature: 0~40° (Burn-in, not airtight, W/ Battery 0~35°)/ Storage Temperature: -20~60°
Humidity	Operating & Storage:10 ~ 90%, non-condensing
IP Rating	Front IP65, IPx1 for Whole System	Front IP65, Rear IP54	Front IP65, IPx1 for Whole System
Housing	Front: Full flat design/ Touch (standard)/ Glass (customized); Rear: Plastic White w/Anti-bacteria (MRSA), Housing
Dimensions (Net)	541.0mm (H) x 352.9mm (V) x 56.0mm (T)
Weights (Net)	7.0 kg (w/o power adapter/battery pack), 8.5 kg (w/ x3 battery pack & no power adaptor)
Mounting	VESA 100 x 100
Certification	CE: EN 60601-1-2:2015(V4.0) EN 60601-1:2006 + A11: 2011 + A1: 2013 + A12: 2014 Compliance VCCI: 2016-11, Class B (PSU/Battery with PSE) FCC: Part 18 Class B UL: ANSI/AAMI ES60601-1:2012 (V3.1) By Project cUL: CAN/CSA-C22.2 No. 60601-1:2014 (V3.1) By Project ISO 14971 / IEC62133
