| CPU / Chipset | LGA1151 package 6th/7th generation Intel Core i7/i5/i3/Celeron processor (35W max.) |
|---|---|
| Graphic | Intel® integrated HD Graphics |
| RAM | DDR4 Dual-2133 SODIMMl, non-ECC, 4GB to 32GB |
| OS Support | Windows 7 embedded, Windows 7 pro, Windows 8 embedded, Windows 8 industrial, Windows 10 IoT Enterprise LTSC |
| Storage | 2.5" SATA HDD drive bay x 1 ,mSATA via mini PCI-E x 1 |
| Expansion | PCI-E(x16) x 1, Mini PCIe x2 |
| Display Size | 17" TFT-Color LCD (5:4) |
| Display | 1280 x 1024(SXGA), 16.2M colors (RGB 6 bit + HiFRC Data), 170(H) / 160(V), 350 nits (Typ. Center point), CR:1000 : 1 (Typ) |
| Touch Screen | 5 Wire Resistive Touch Panel / Light Transmission: 80% ± 3% / Hardness: 3H pencil / Life: 35M times |
| WMP-17F IP0A (STD) | WMP-17F IP0B (ISO) | |
|---|---|---|
| USB | USB3.0 x 4 | ISO USB2.0 x 2 |
| COM | RS232/422/485 x 1:Support RS485 Auto flow control function, RS232 x 1 | ISO RS232/422/485 x 1, ISO RS232 x 1 |
| LAN | Giga LAN RJ45 X 2 | ISO RJ45 x 1 |
| Audio | Built-in Speaker 2W x 2; Optional Microphone on I/O cover; 3.5mm phone jack connector * 2 (Line-out, Mic-In); | |
| Video Out | DVI-D x 1 + DP x 1 | |
| Control Hot Key (R to L) | Brightness down/Brightness up // Power // Volume down/Volume up | |
| Cooling | Fan |
|---|---|
| Power Input | DC-In x 1, DC 7~32V input (9~28V with battery pack) |
| Power Adapter | AC input 100 ~ 240V/ 47~63 Hz/ DC output 12V/ 100W |
| Temperature | Operating Temperature: 0~40°C (chamber) / Storage Temperature: -20~60°C |
| Humidity | Operating & Storage:10 ~ 90%, non-condensing |

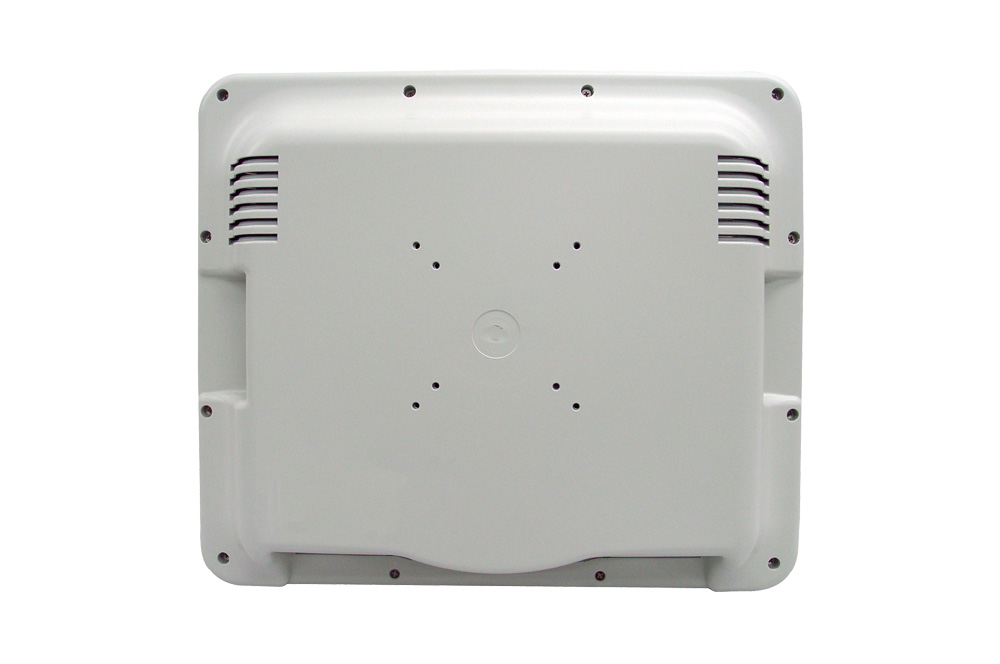

| IP Rating / Housing | IP65 (Front Side), IPx1 whole system / Front: Full flat design/ Touch (standard)/ Glass (customized); Rear: Plastic White w/Anti-bacteria (MRSA), Housing |
| Dimensions (Net) | 420 mm (H) x 360 mm (V) x 83 mm (T) |
| Weights (Net) | 7.0 kg (w/o power adapter/battery pack) |
| Mounting | Optional Stand, VESA 75/100 |
| Certification | CE: EN 60601-1-2:2015(V4.0) EN 60601-1:2006 + A11: 2011 + A1: 2013 + A12: 2014 Compliance VCCI: 2016-11, Class B (PSU with PSE), FCC: Part 18 Class B UL: ANSI/AAMI ES60601-1:2012 (V3.1) cUL: CAN/CSA-C22.2 No. 60601-1:2014 (V3.1) ISO 14971 / IEC62133 |
