- Low Power Consumption N3350 Processor
- 10.1" 1280X800 LCD w/P-Cap Touch
- HMI Panel PC w/ EMC 4.0 Passed
- Power Button for Easy Control
- Compact Size Ideally for Limited Space
| CPU / Chipset | Intel® Celeron® N3350 Processor, 1.1GHz (up to 2.4G Hz) |
|---|---|
| Graphic | Intel® integrated HD 500 Graphics |
| RAM | 2 x DDR3L SO-DIMM sockets, Max. Capacity 8 GB |
| OS Support | Optional: Windows 10 (64bit) |
| Storage | M.2 M-key 2242 SSD, (SATA 6Gb/s) |
| Expansion | 1 x Mini-PCIe slot, Full Card Size, Signal (Support PCIex1, USB2.0) |
| Display Size | 10.1" |
| Display | 1280x800, 16.7M colors , 170(H) / 170(V), 400 nits (Typ. Center point), CR:800 : 1 (Typ) |
| Touch Screen | Full flat projective capacitive touch panel / Light Transmission: 90% ± 3% / Hardness: 7H pencil, pressure 750g/45° |

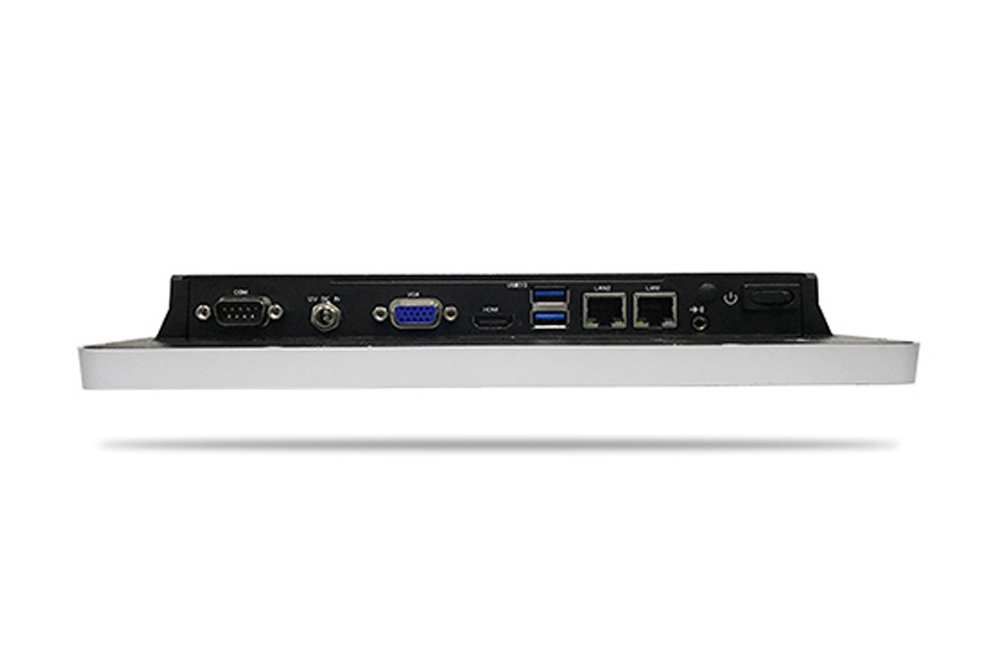

| USB | 2 x USB3.0 |
|---|---|
| COM | 1 x RS232/422/485 (default is RS232, RS422 and RS485 are by manually change jumper setting on mother board) |
| LAN | 2 x RJ45 |
| Audio | 1 x Line Out, 3.5mm Phone Jack, 1 x 1.5W Speaker |
| Video Out | HDMI 1.4a (output) x 1 / VGA D-sub x 1 |
| Control Hot Key (R to L) | Rear Bottom: Power on /off |
| Cooling | Fanless |
|---|---|
| Power Input | 9~36V DC-in x 1 |
| Power Adapter | External, 63 Watts, Universal 100 ~240V AC in, 12V DC Out |
| Temperature | Operating Temperature: 0~50℃ (IEC60068-2-78) / Storage Temperature: -20~60℃ |
| Humidity | Operating & Storage:10 ~ 90%, non-condensing |
| IP Rating / Housing | IP65 (Front Side) / Silver Bezel / Black Cover |
| Dimensions (Net) | 263.3mm (H) x 171mm (V) x 35.7mm (T) |
| Weights (Net) | 1.27 KG (approximate, w/o power adapter) |

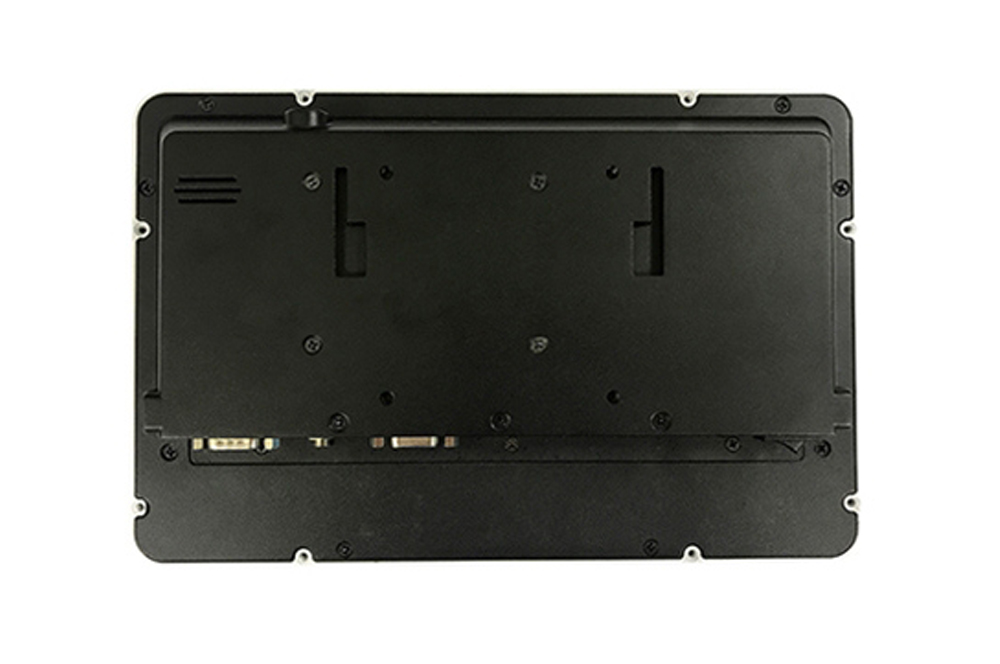

| Mounting | Chassis, VESA (75x75) |
| Certification | CE/ FCC/ VCCI Class B, Canada ICES-003, CE EN60601-1-2 |
