Intel Edge Platform

System Processor

	MS-C910-SKU1	MS-C910-SKU2	MS-C910-SKU3	MS-C910-SKU4
CPU	Intel® 12th Gen IOTG Alder Lake-S Processor Core i9/i7/i5/i3, Pentium®, Celeron®Processor, Max. 35W Inte® 13th Gen IOTG Raptor Lake-S Processor Core i9/i7/i5/i3, Max. 35W Intel® 14th Gen IOTG Raptor Lake-S Refresh Processor Core i9/i7/i5/i3, Max. 35W
Frequency	P-Core 1.1 GHz~5.5 GHz (Depends on CPU) E-Core 0.8 GHz~4.0 GHz (Depends on CPU)
L2 Cache	4M~36M (Depends on CPU)
CPU Type	Socket (LGA1700)
Chipset	Intel® R680E chipset
BIOS	AMI

Memory

	MS-C910-SKU1	MS-C910-SKU2	MS-C910-SKU3	MS-C910-SKU4
Technology	Dual-channel DDR5(ECC/non-ECC) 5600MHz (ECC support & Frequency will depend on CPU)
Max. Capacity	Up to 64GB
Socket	2 x 262-pin SO-DIMMs

Graphics

	MS-C910-SKU1	MS-C910-SKU2	MS-C910-SKU3	MS-C910-SKU4
Controller	Intel® UHD Graphics
Graphic Memory	Depends on CPU
Multiple Display	4 Independent displays
Display Interface	HDMI up to 4096 x 2304 @60Hz DP up to 4096 x 2304 @60Hz

Ethernet

	MS-C910-SKU1	MS-C910-SKU2	MS-C910-SKU3	MS-C910-SKU4
Controller	1 x Intel® I226LM 2.5GbE LAN (Support Intel® AMT) 3 x Intel® I226V 2.5GbE LAN

Audio

	MS-C910-SKU1	MS-C910-SKU2	MS-C910-SKU3	MS-C910-SKU4
Controller	Realtek® ALC897 HD Audio Codec

H/W Monitor

	MS-C910-SKU1	MS-C910-SKU2	MS-C910-SKU3	MS-C910-SKU4
Watchdog Timer	256-level Watchdog Timer
Smart Fan	Yes

TPM

	MS-C910-SKU1	MS-C910-SKU2	MS-C910-SKU3	MS-C910-SKU4
Controller	Infineon SLB9672VU2.0

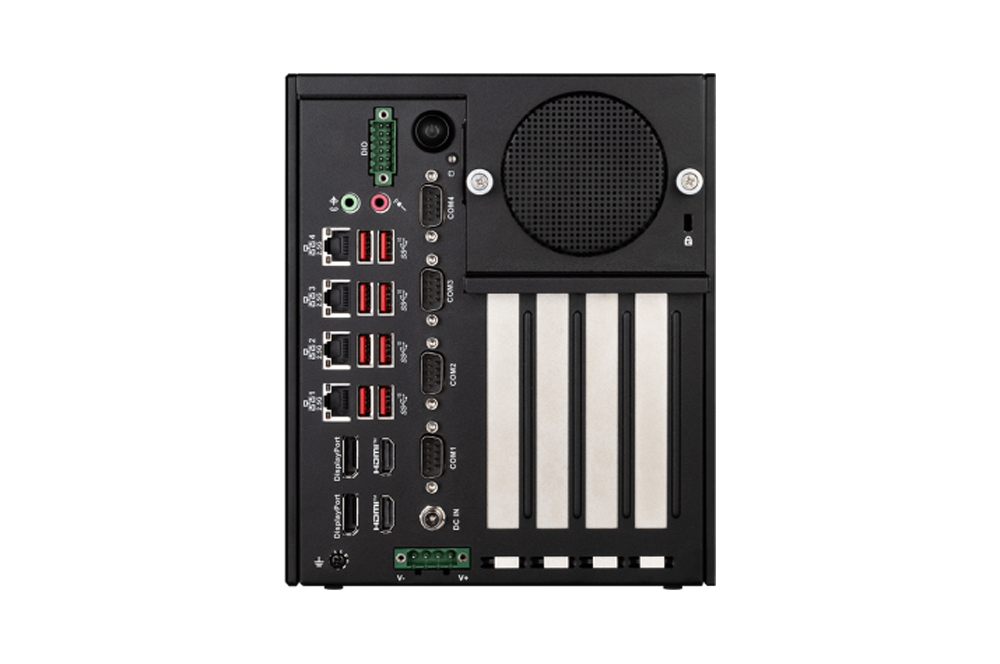

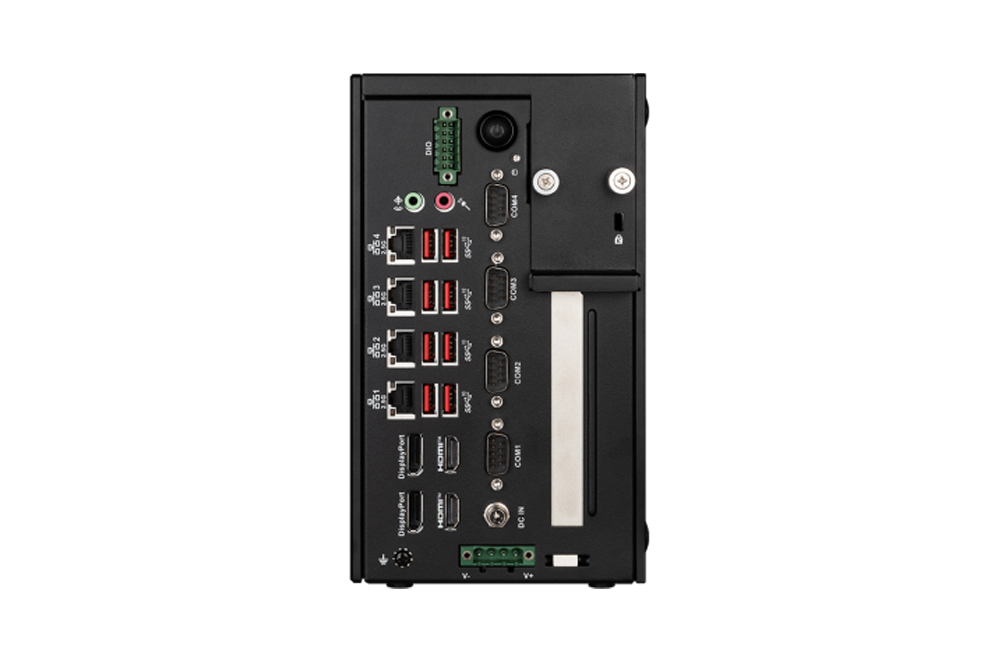

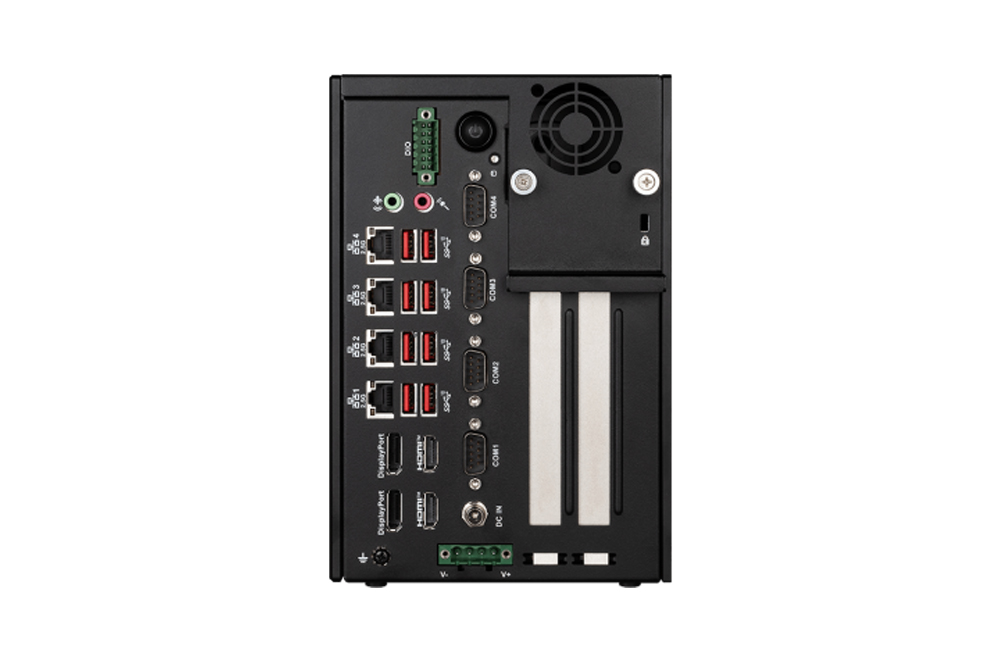

I/O Interface

	MS-C910-SKU1	MS-C910-SKU2	MS-C910-SKU3	MS-C910-SKU4
RJ-45	4
Audio	1 x Mic-in, 1 x Line-out
USB	8 x USB 3.2 Gen 2 2 x USB 3.2 Gen 1 3 x USB 2.0 (internal, Type-A)
Serial	4 x COM ports COM1~2: RS232/422/485, 0V/5V/12V COM3~4: RS-232, 0
HDMI	2
GPIO	8-bits (4 x GPI; 4 x GPO), 5~35V, isolation 1.3KV
DisplayPort	2
Antenna	2 openings reserved for antennas	N/A	N/A	N/A

Expansion Slot

	MS-C910-SKU1	MS-C910-SKU2	MS-C910-SKU3	MS-C910-SKU4
PCIe x16	1	1	1	N/A
PCIe x8	N/A	N/A	N/A	2
PCI	3	1	N/A	N/A
M.2	1 x M.2 M key (PCIe Gen4 x4 NVMe & SATA 3.0), 2280 1 x M.2 E key (PCIe Gen4 x1, USB2.0), 2230	1 x M.2 M key (PCIe Gen4 x4 NVMe & SATA 3.0), 2280
Mini-PCIe	N/A	1 x Full-size	N/A	N/A

Storage

	MS-C910-SKU1	MS-C910-SKU2	MS-C910-SKU3	MS-C910-SKU4
SATA	2 x 2.5" HDD/SSD			N/A

Power Supply

	MS-C910-SKU1	MS-C910-SKU2	MS-C910-SKU3	MS-C910-SKU4
SATA	DC-In 8-48V Wide-Range, Pluggable connectors with latch (V+, V-)			N/A

Environment

	MS-C910-SKU1	MS-C910-SKU2	MS-C910-SKU3	MS-C910-SKU4
Operating Temperature	-10 ~ 50°C w/ industrial DC power Up to 35W CPU Note: Thermal w/ Airflow:0.7m/s
Operating Humidity	10 ~ 90% , non-condensing
Storage Humidity	10 ~ 90%, non-condensing
Storage Temperature	-20 ~ 80°C
Vibration	Operating, IEC 60068-2-64: 2 Grms, random, 5 ~ 500 Hz, 1hr/axis (w/ HDD/SSD)
Shock	Operating, IEC 60068-2-27: 50G, half sine, 11ms (w/ HDD/SSD)

Physical Characteristics

	MS-C910-SKU1	MS-C910-SKU2	MS-C910-SKU3	MS-C910-SKU4
Dimensions	176 x 226 x 217 mm	143 x 226 x 217 mm	123 x 240 x 217 mm	127 x 240 x 217 mm
Weight	5.0 kg	4.4 kg	4.3 kg	4.4 kg
Mounting	Wall mount

Certification

	MS-C910-SKU1	MS-C910-SKU2	MS-C910-SKU3	MS-C910-SKU4
EMC	FCC Class A, CE, RCM, BSMI, VCCI, UKCA, IC
Safety	IEC 62368: CE(LVD) / BSMI

Software Platform

	OS Support	MS-C910-SKU2	MS-C910-SKU3	MS-C910-SKU4
EMC	Windows 10 IoT Enterprise 2021 LTSC (64-bit, 21H2) Windows 11 IoT Enterprise (64-bit, 22H2, Pre-scan) Linux (Support by request)
