- Supports NVIDIA Jetson AGX Orin™ 32GB/64GB module
- 1 x GbE, 1 x 10GbE LAN port
- 1 x M.2 B-Key, 1 x M.2 E-Key, 1 x M.2 M-Key slot
- Wide input voltage range from 9 to 36VDC
- Operating Temperature -25 ~ +55°C
- Fanless Design
| AIE-PX13 | AIE-PX23 | |
|---|---|---|
| Module Compatibility | NVIDIA Jetson AGX Orin 32GB | NVIDIA Jetson AGX Orin 64GB |
| AI Performance | 200 TOPS | 275 TOPS |
| GPU | 1792-core NVIDIA Ampere GPU with 56 Tensor Cores | 2048-core NVIDIA Ampere GPU with 64 Tensor Cores |
| CPU | 8-core Arm® Cortex® -A78AE v8.2 64-bit CPU 2MB L2 + 4MB L3 | 12-core Arm® Cortex® -A78AE v8.2 64-bit CPU 3MB L2 + 6MB L3 |
| Memory | 32GB 256-bit LPDDR5 204.8 GB/s | 64GB 256-bit LPDDR5 204.8 GB/s |
| Storage | 64GB eMMC 5.1 | |
| Display | 1 x HDMI 2.0 Type A | |
| Audio | Line-out / Line-in / Mic (optional with daughter board) | |
| LAN | 1 x RJ-45 GbE port, 1 x RJ-45 10GbE | |
| USB | 2 x USB 3.2 Gen1 Type A, 1 x USB 2.0 (DB-15), 1 x OTG Type-C, 1 x USB 3.2 Gen2 Type-C | |

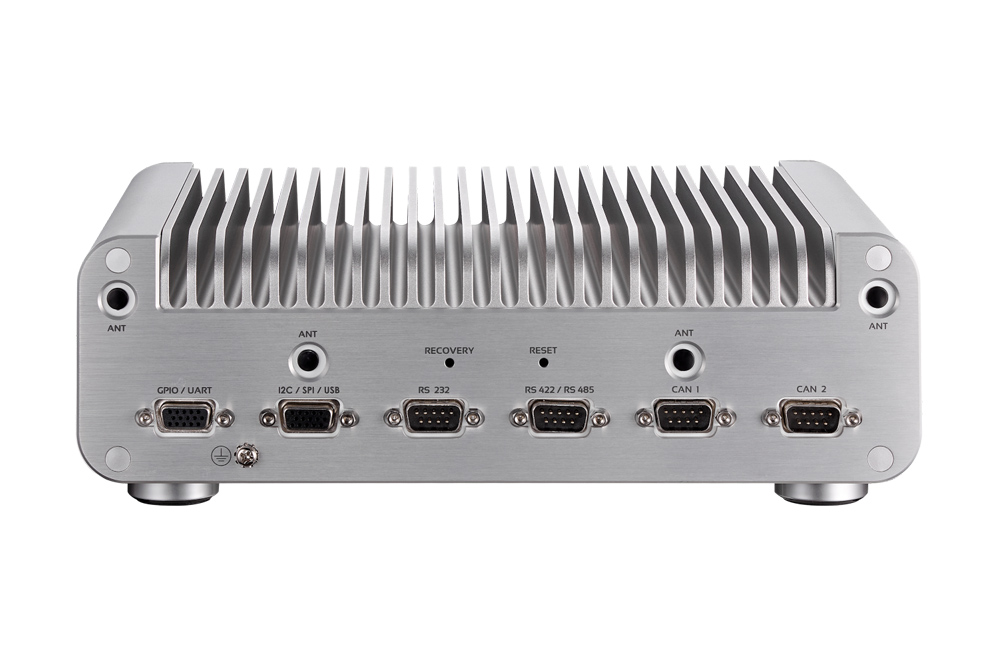

| I/O Interfaces | 2 x I2C, 1 x SPI, 5 x GPIO, 2 x UART, 1 x RS-232, 1 x RS-422/485 (2-in-1), 2 x CAN 2.0b (isolation; support CAN FD), 1 x microSIM Card Slot |
|
| Expansion | 1 x M.2 B-Key 3042/3052 (LTE/4G/5G) 1 x M.2 E-Key 2230 (WiFi/BT) 1 x M.2 M-Key 2280 (supports NVMe; PCIe x4 Gen4) 1 x microSD Card Slot |
|
| MISC. Function | 1 x Power / Recovery / Reset Button | |
| Power Input/Connector | DC-in 9 to 36 VDC / 4-Pin DC Jack Power Connector | |
| PoE Interface | Idle: 5.5 W Full Loading: 51.08* W |
Idle: 5.9 W Full Loading: 71* W |
| *For more test condition information, please refer to user manual | ||
| Dimension (WxDxH) | 270 x 195 x 80 mm (10.63 x 7.67 x 3.15") | |
| Mounting | Wall Mount (optional) / Din Rail (optional) | |
| Net Weight | 4.2 kg (9.7 lb) | |
| Vibration | 1 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis | |
| Shock | 10 G, IEC 60068-2-27, half sine, 11 ms duration | |
| Temperature | Operating Temperature: -25°C ~ +55°C (-13°F ~ +131°F) with 0.5 m/s air flow Storage Temperature: -40°C ~ +85&def;C (-40°F ~ +185°F) |
|
| Humidity | 95% @ 40°C (104°F) (non-condensing) | |
| Software Support | Linux (Support Jetpack 5.0 above) | |
| Certification | CE / FCC Class A / UKCA | |
