WMD-243

23.8" Full Flat Projective Capacitive Touch Medical Grade Monitor

23.8" True Color Diagnostic Panel
Anti-bacteria (MRSA) Plastic Housing
IP65 at Front Side, IPx1 for Whole System
Built-in a Pair of 5W Stereo Speakers
Support HDMI, DP, DVI-D, Audio-in
Support Optional Desktop Stand, and VESA 100
IEC60601-1-2 4th Edition & RoHS2 Compliance

System

Display Size	23.8" wide TFT-Color LCD (16:9)
Display	1920 x 1080 (Full HD), 16.7M colors (RGB 8 bit), 178(H) / 178(V), 250 nits (Typ. Center point), CR:3000 : 1 (Typ.)
Touch Screen	Full flat projective capacitive touch panel / Light Transmission: 90% ± 3% / Hardness: 7H pencil / Life: 100M times

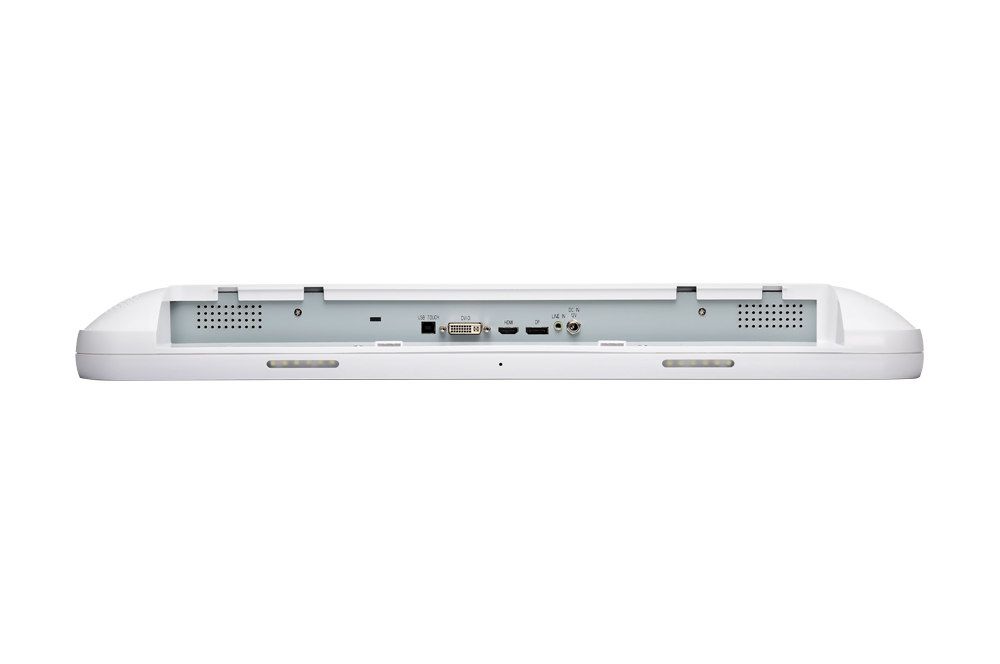

I.O. Ports

USB	USB2.0 x 1
Audio	3.5mm phone jack connector * 1 (Line-in), Speaker 5W x 2
Video Out	DVI-D x 1, DP x 1, HDMI 1.4a (input) x 1
Reading Light	Light Bar x 2
Control Hot Key (R to L)	Power Button // Auto / OSD OFF // Up / Speaker adjust // Down /Reading light // Menu / Enter

Mechanical and Environmental

Power Input	DC12V, 63W MAX
Power Adapter	AC input 100 ~ 264V / 47 ~ 63 Hz / DC output 12V
Temperature	Operating Temperature: 0~45°C (chamber) / Storage Temperature: -20~60°C
Humidity	Operating & Storage:10 ~ 90%, non-condensing
IP Rating / Housing	IP65 at Front Side, IPx1 for Whole System / Plastic / Hospital white
Dimensions (Net)	606 mm (H) x 398 mm (V) x 65.6 mm (T)
Weights (Net)	8.65 kg (w/o power adapter/battery pack)
Mounting	Optional Stand, VESA 100
Certification	CE: EN 60601-1-2:2015(V4.0),EN 60601-1:2006/A1:2013(V3.1),VCCI: 2016-11, Class B (PSU with PSE),FCC: Part 18 Class B, ISO 14971
