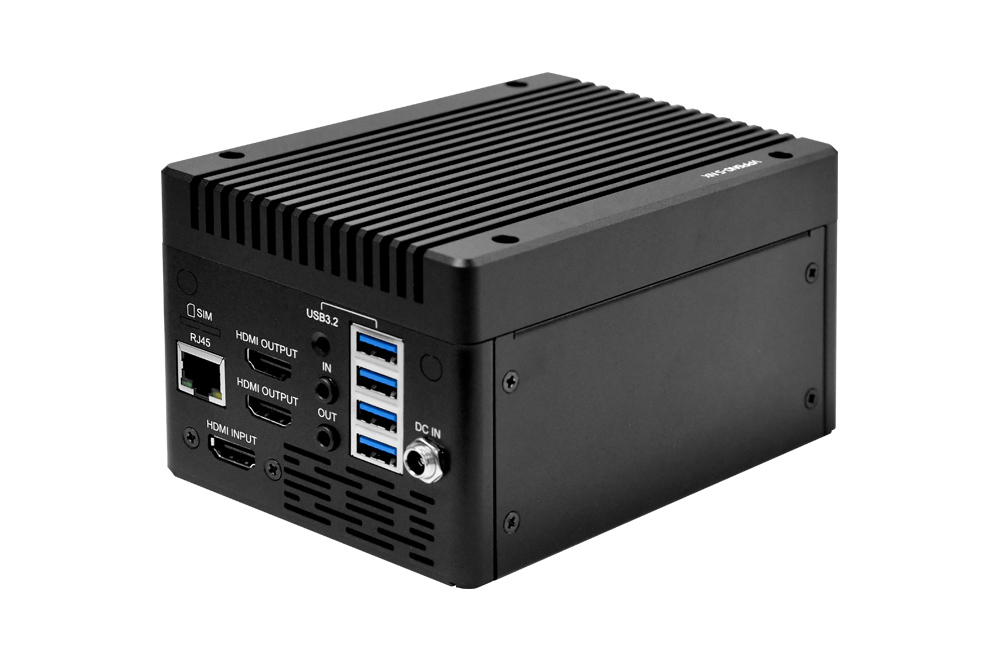

- Supports NVIDIA Jetson Orin™ NX 8GB module
- Up to 100 TOPS AI Performance
- 3×M2 M Key, Gen 4×4 / Gen 4×2 / Gen 4×1
- Fanless Design
- 4×USB3.2 Gen2
- RS232 / RS485 / I2C
| CPU | NVIDIA Jetson Orin NX 8GB 6-Core Arm® Cortex®-A78AE v8.2 64-Bit CPU 1.5MB L2 + 4MB L3 |
|---|---|
| NVIDIA Jetson Orin NX 16GB 8-Core Arm® Cortex®-A78AE v8.2 64-Bit CPU 2MB L2 + 4MB L3 |
|
| GPU | 1024-Core NVIDIA Ampere Architecture GPU with 32 Tensor Cores |
| API Performance | NVIDIA Jetson Orin™ NX 8GB, 70 TOPS |
| NVIDIA Jetson Orin™ NX 16GB, 100 TOPS | |
| System Memory | NVIDIA Jetson Orin™ NX 8GB, 8GB LPDDR5 |
| NVIDIA Jetson Orin™ NX 16GB, 16GB LPDDR5 |
| Storage | Supports External NVMe |
|---|---|
| Display Interface | 2xHDMI2.0 |
| Ethernet | 1xRJ45 for 10/100/1000Mbps Ethernet DHCP Client |
| Expansion Slot | M.2 1×M.2 2280/3080 M Key PCIe Gen4×4 Slot 1×M.2 2280 M Key PCIe Gen4×2 Slot 1×M.2 2280 M Key PCIe Gen4×1 Slot |
| USB | 4×USB3.2 Gen2 (Type-A) 1×USB3.2 Gen1 (Pin Header) 1×USB3.2 Gen1 (Pin Header, Contains USB3.0 Signal Only) |
| MIPI | 8×MIPI CSI Lanes (Support MIPI Camera, Capture Card) |
| Audio | 1×Line In (3.5mm or Pin Header) 1×Line Out (3.5mm or Pin Header) |
| Perherial Communication | 1×RS232 (Phoenix Connector or Pin Header) 1×RS485 (Phoenix Connector or Pin Header) 4×GPIO (Pin Header) 3×I2C (Pin Header) |
| Misc. Features | Firmware Upgradable AutoPower (Pin Header) |
