- Powered by NVIDIA IGX Orin™ and NVIDIA® RTX A6000

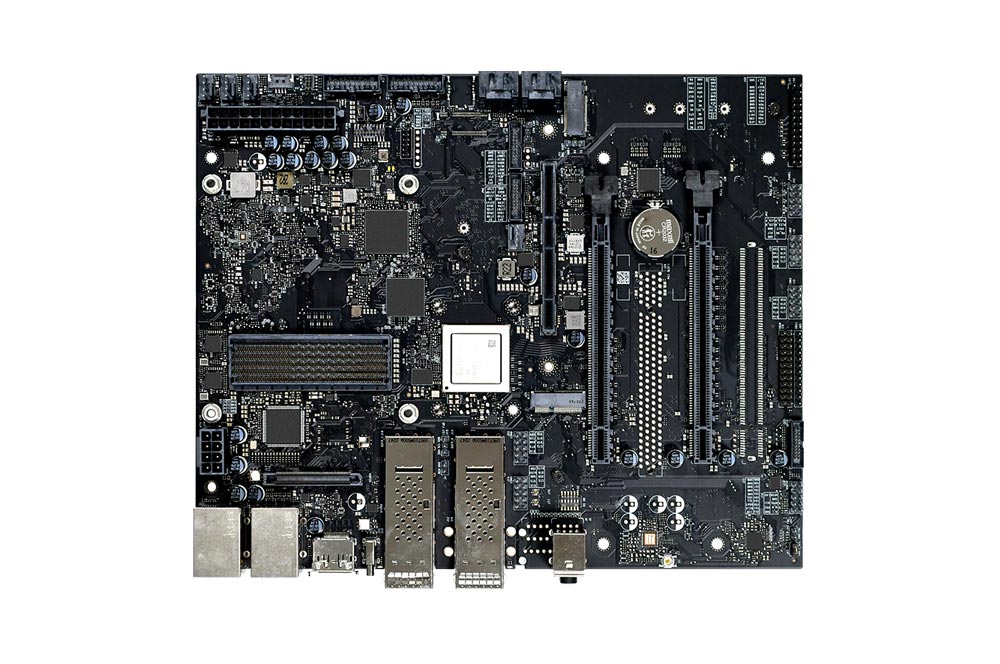

- NVIDIA IGX Orin™ Motherboard
- Up to 700 TOPS AI Performance
- 2×100Gb QSFP28 Port, 2×1Gb RJ45 Port
- 1×PCIe Gen5×8
- 8×USB3.2 Gen2
| CPU | NVIDIA IGX Orin™ 12-core Arm® Cortex®-A78AE v8.2 64-Bit CPU 3MB L2 + 6MB L3 |
|---|---|
| GPU | NVIDIA IGX Orin™ 2048-Core NVIDIA Ampere Architecture GPU with 64 Tensor Cores |
| NVIDIA RTX A6000 48 GB GDDR6 Memory, 768 GB/s Memory Bandwidth 10752-Core NVIDIA Ampere Architecture GPU with 336 Tensor Cores |
|
| API Performance | 700 TOPS |
| System Memory | 64GB LPDDR6 |
| Storage | 64GB eMMC 5.1 ( On NVIDIA IGX Orin™ Module) 4xSATA |
|---|---|
| Display Interface | 4xDP1.4 |
| Ethernet | 2×100Gb QSFP28 Port 2×RJ45 for 10/100/1000Mbps Ethernet DHCP Client |
| Expansion Slot | PCIe 1×PCIe Gen5×16 Slot ( With 8 PCIe Lanes ) 1×PCIe Gen5×16 Slot ( With 16 PCIe Lanes, for Optional RTX A6000 ) |
| M2 1×M.2 2230 E Key USB2.0/PCIe Gen2×1 Slot 1×M.2 2280 M Key PCIe Gen4×4 Slot |
|
| USB | 4xUSB3.2 Gen2 (Type-A) 4×USB3.2 Gen2 (Pin Header) 1×USB3.2 Gen2 (Type-C) |
| MIPI | 16×MIPI CSI Lanes (Support MIPI Camera, Capture Card) |
| Audio | 1×3.5mm Line In 1×3.5mm Line Out 1×3.5mm MIC In |
| Perherial Communication | 4×COM Port (Pin Header) 10×GPIO (Pin Header) CAN Bus (Pin Header) |
| Misc. Features | Firmware Upgradable |
| NVIDIA RTX A6000 | V |
|---|
