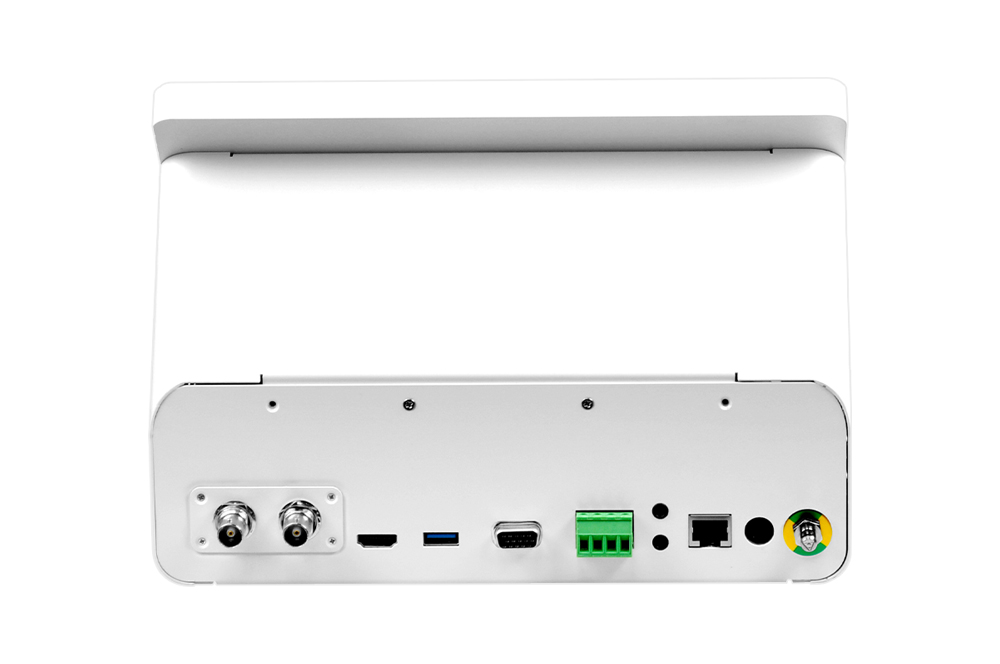

Medical HMI Series

System

CPU	NVIDIA® Jetson Orin™ NX 8GB 6-Core Arm® Cortex®-A78AE v8.2 64-Bit CPU 1.5MB L2 + 4MB L3
	NVIDIA® Jetson Orin™ NX 16GB 8-Core Arm® Cortex®-A78AE v8.2 64-Bit CPU 2MB L2 + 4MB L3
GPU	1024-Core NVIDIA Ampere Architecture GPU with 32 Tensor Cores
AI Performance	NVIDIA® Jetson Orin™ NX 8GB 70 TOPS
	NVIDIA® Jetson Orin™ NX 16GB 100 TOPS
Sytem Memory	NVIDIA® Jetson Orin™ NX 8GB 8GB LPDDR5
	NVIDIA® Jetson Orin™ NX 16GB 16GB LPDDR5

Interface

Stoarge	Supports External NVMe 1×SD Card Slot
Display Interface	1×HDMI2.0
Ethernet	1×RJ45 for 10/100/1000Mbps Ethernet DHCP Client
Expansion Slot	1×M.2 2280 M Key PCIe Gen4×2 Slot 1×M.2 2280 M Key PCIe Gen4×1 Slot
USB	2×USB3.2 Gen2 (Type-A), 1×USB2.0 (Type-A)
MIPI	Default: 2×4MIPI CSI-2 Lanes (D-PHY 2.1, Support MIPI Camera, Capture Card) Option: 4×2MIPI CSI-2 Lanes D-PHY 2.1, Support MIPI Camera, Capture Card )
Audio	1×3.5mm Line In, 1×3.5mm Line Out
Peripherals	D-Sub Connector 1×RS232, 1×UART Phoenix Connector 4×GPIO 1×CAN Bus (Pin Header)
Misc. Feature	Firmware Upgradable

Screen Feature

Size	10 inch
Resolution	1280x800
