- Support NVIDIA Jetson Orin™ NX module
- 1 x M.2 B-Key, 1 x M.2 E-Key, 1 x M.2 M-Key (128GB built-in)
- 2 x RJ-45 GbE ports
- Wide input voltage range from 12 to 24 VDC
- Operating Temperature -25°C ~ +55°C
- Fanless Design
| AIE-PN32 | AIE-PN42 | |
|---|---|---|
| Module Compatibility | NVIDIA Jetson Orin NX 8GB | NVIDIA Jetson Orin NX 16GB |
| AI Performance | 70 TOPS | 100 TOPS |
| GPU | 1024-core NVIDIA Ampere architecture GPU with 32 Tensor Cores | |
| CPU | 6-core Arm® Cortex®-A78AE v 8.2 64-bit 1.5MB L2 + 4MB L3 | 8-core Arm® Cortex®-A78AE v 8.2 64-bit 2MB L2 + 4MB L3 |
| Memory | 8GB 128-bit LPDDR5 102.4 GB/s | 16GB 128-bit LPDDR5 102.4 GB/s |
| Storage | 1 x M.2 M-Key 2242 (NVMe 128GB built-in) | |
| Display | 1 x HDMI 2.0 Type A | |
| LAN | 2 x RJ-45 GbE ports | |
| USB | 2 x USB 3.2 Gen2 Type A (support up to 10 Gbps shared) 1 x OTG Type-C |
|

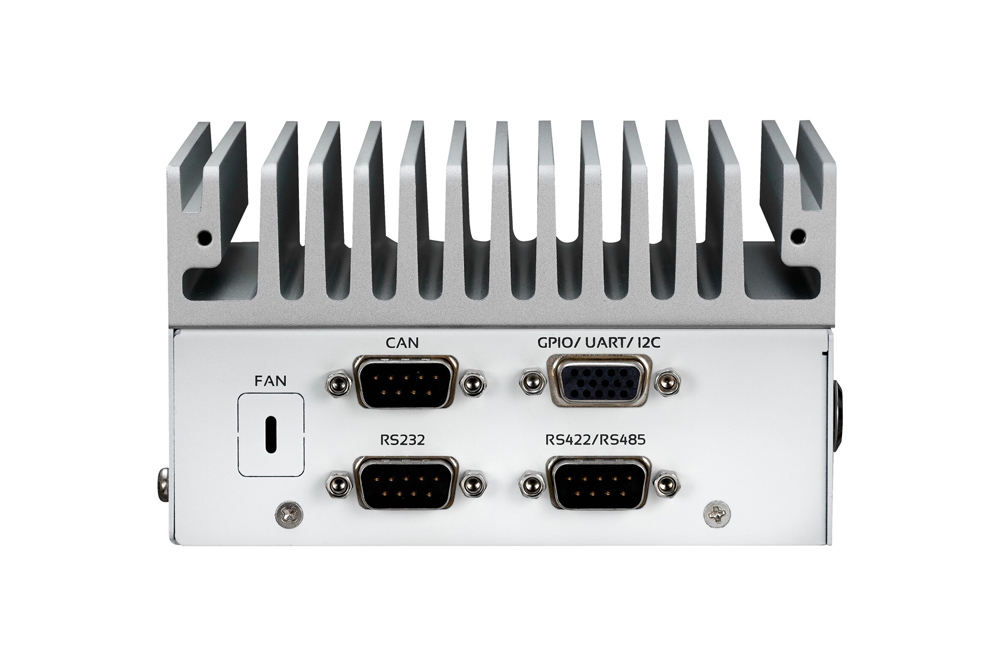

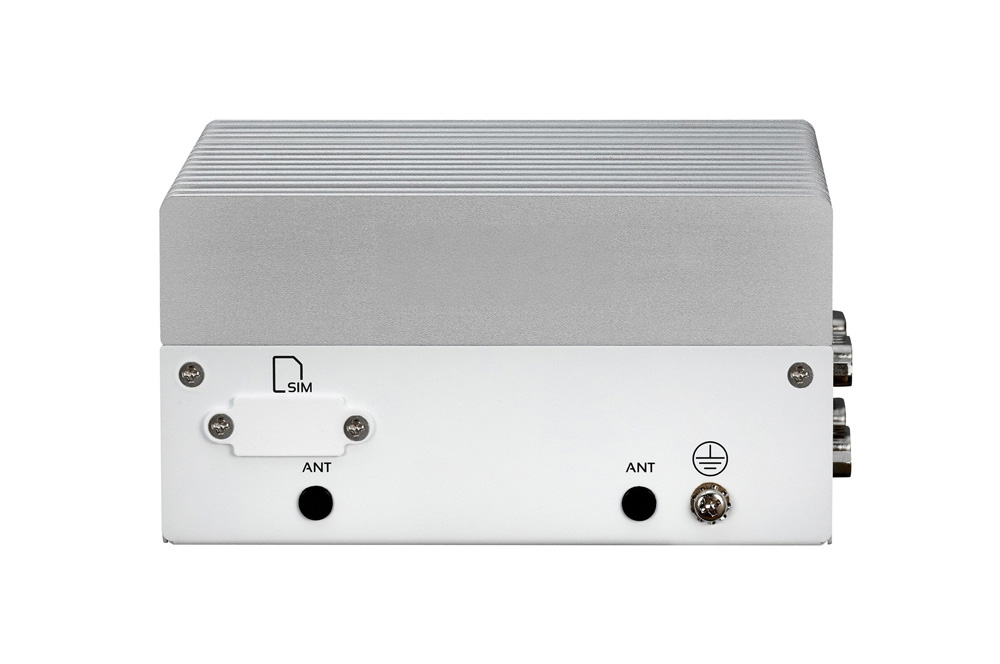

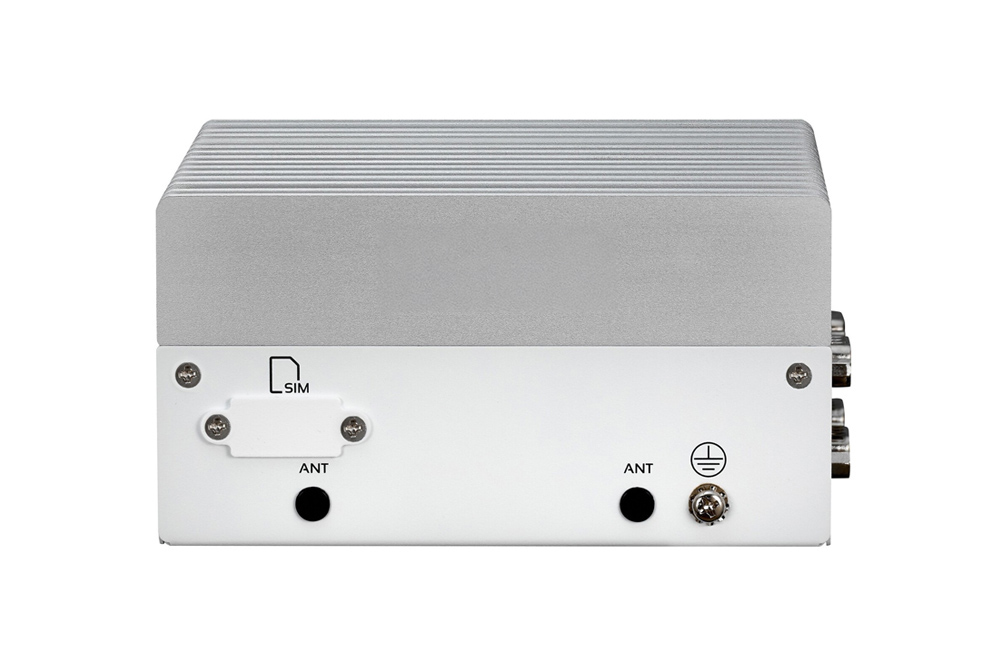

| I/O Interfaces | 5 x GPIO, 1 x UART, 1 x I2C, 1 x RS-232, 1 x RS-422/485 (2-in-1), 1 x CAN (isolation; support CAN FD), 1 x microSIM Card Slot |
|
| Expansion | 1 x M.2 B-Key 3042/3052 (LTE/4G/5G) 1 x M.2 E-Key 2230 (WiFi/BT) |
|
| MISC. Function | 1 x Power Button / 1 x Recovery Button / 1 x Reset Button | |
| Power Input/Connector | DC-in 12-24VDC / 4-Pin DC Jack Power Connector | |
| Power Consumption | Idle: 6.4 W Full Loading: 35.45* W *For more test condition information, please refer to user manual |
|
| Dimension (WxDxH) | 137.6 x 125 x 71.5 mm (5.41 x 4.92 x 2.81 in) | |
| Mounting | Wall Mount (optional) / Din Rail (optional) | |
| Net Weight | 1.36 kg (3 lb) | |
| Vibration | 1 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis | |
| Shock | 10 G, IEC 60068-2-27, half sine, 11 ms duration | |
| Temperature | Operating Temperature: -25°C ~ +55°C (-13°F ~ +131°F) with 0.5 m/s airflow Storage Temperature: -40°C ~ +85°C (-40°F ~ +185°F) |
|
| Humidity | 95% @ 40°C (104°F) (non-condensing) | |
| Software Support | Linux (Support Jetpack 5.0 above) | |
| Certification | CE / FCC Class A / UKCA | |
