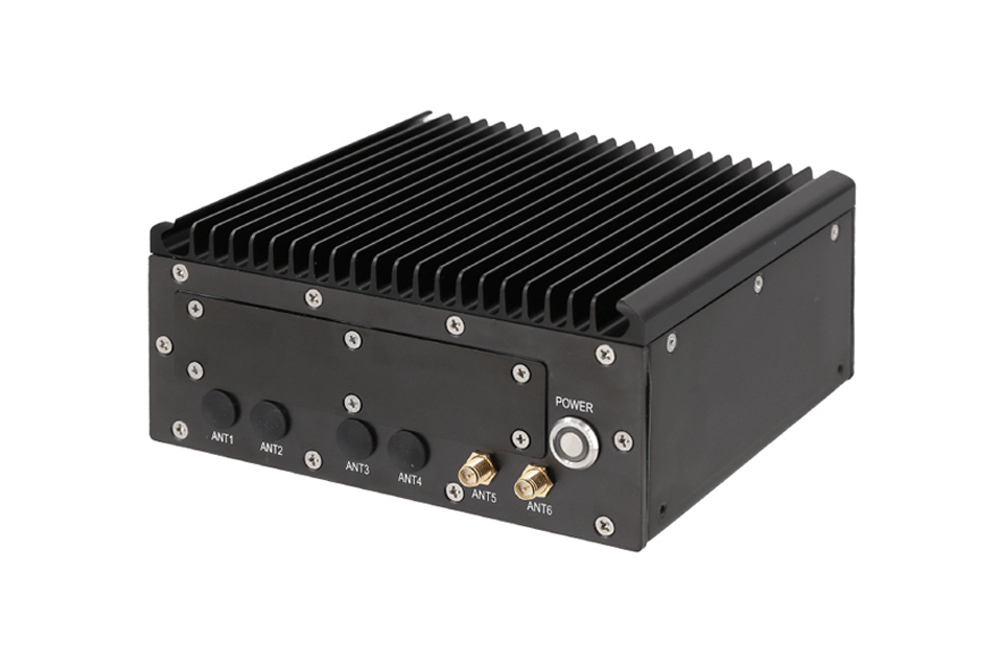

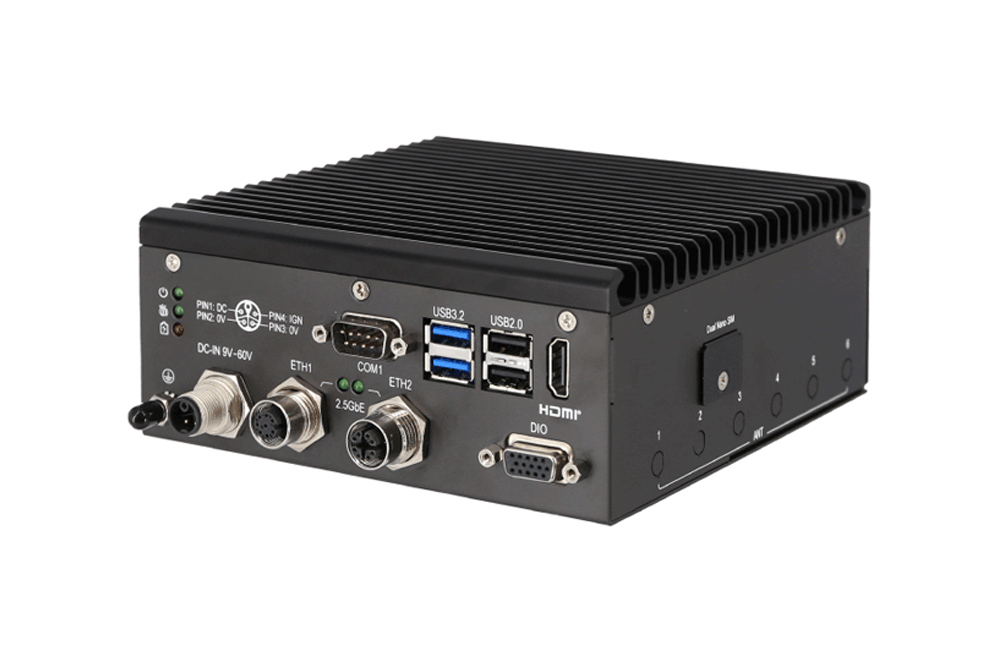

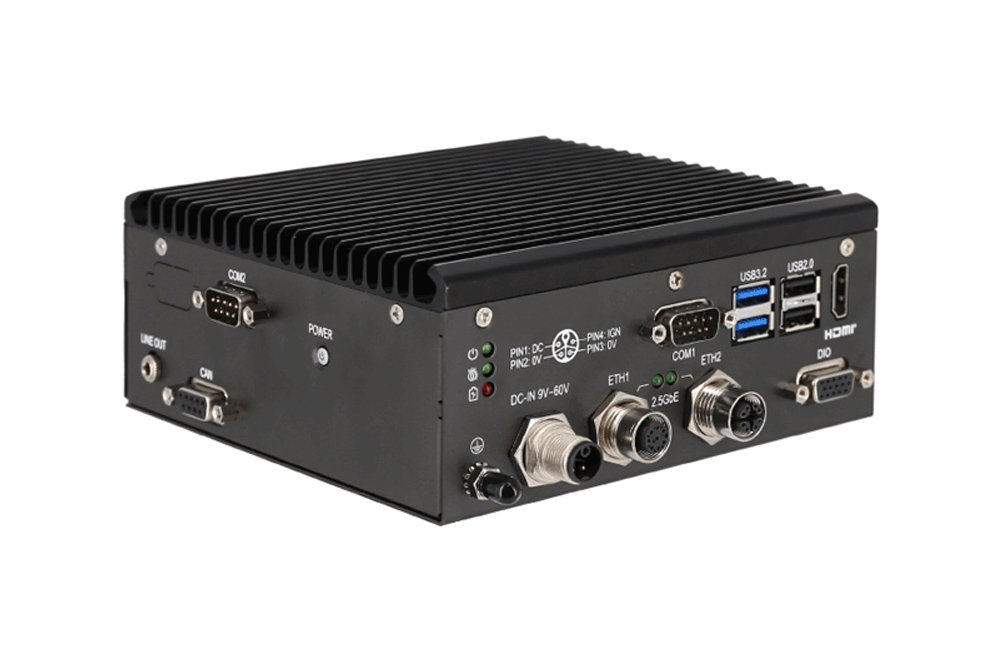

RMC-A3132

Intel Atom® x7000RE DIN-rail PoE Fanless Rugged Edge Computer

Industrial Grade Amston Lake Processor and Ethernet Controller
Commercial Grade Twin Lake Processor SKU Available
1 x 2.5GbE, 4 x PoE Ports for IoT Devices Connectivity
1 x Built-in CAN 2.0 for Vehicle Device Communication
Dual NVMe SSD Support for NVR Applications
Built-in Watchdog and Smart Power Management for System Health Monitoring
Supports DIN-rail and Wall-mount Installation

System

CPU	Intel Atom® x7835RE Octa-core Processor up to 3.6 GHz Intel Atom® x7433RE Quad-core Processor up to 3.4 GHz Intel® Processor N150 Quad-core Processor up to 3.2GHz
Memory	1 x SO-DIMM DDR5 up to 16GB
Graphics	Intel® UHD Graphics
Watchdog	Auto reset for unresponsive system
Security	TPM 2.0

I/O

Video	1 x HDMI® with support for 4K@60Hz as speciﬁed in HDMI 2.0b
Audio	1 x Line-out, 1 x Mic-in (Optional)
Ethernet	1 x 2.5GbE from I226-IT via RJ-45 or M12 X-code for PoE model 4 x GbE* from Marvell Ethernet Switch w/ PoE (PSE Class 3: 15W) via RJ-45 or M12 X-code * Share with 1GbE bandwidth; Power budget: 60W **Non-PoE model: 2 x 2.5GbE
CAN	1 x CAN 2.0
USB	2 x USB 3.2, 2 x USB 2.0
Serial	2 × RS-232/422/485 ports, expandable with 4 optional COM ports
DIO	8 x DI (9-60VDC), 4 x DO (12VDC/100mA)
Internal Expansion	1 x M.2 3042/3052 Key B for WWAN with dual Nano SIM support 1 x M.2 2230 Key E for Wi-Fi/BT

Power

Power Input	DC 9 – 60V Input
Power Mgmt.	Ignition detection, Smart Power Management
Power Protection	OCP, OVP, surge protection, reversed polarity protection
Battey Backup Unit (BBU)	Backup battery for system power backup * Non-PoE model only

Storage

Type	1 x M.2 2280 Key M for NVMe SSD 1 x M.2 2280 Key M for NVMe/SATA SSD

Software

Operating System	Windows 10/11 IoT 64-bit, Ubuntu 20.04/22.04 LTS 64-bit

Mechanical

Construction	Aluminum Alloy with Fanless Design
Antenna	6 x SMA connector panel mount hole
Mounting	DIN rail, Wall-mount
Net Weight	1.90kg (4.19 lb)
Dimensions	RJ-45 model: 150 x 150 x 65 mm (5.91 x 5.91 x 2.56 in.) M12 PoE model: 150 x 150 x 87 mm (5.91 x 5.91 x 3.43 in.)
Ingress Protection	IP40

Environment

Operating Temp.	x7000RE Processor : -40°C ~ 70°C (-40°F ~ 158°F) with 0.6 m/s airﬂow N-series Processor: -30°C ~70°C (-22°F~158°F) with 0.6m/s airﬂow * Operating temp. varies by accessories installed.
Storage Temp.	-40°C ~ 80°C(-40°F ~ 176°F)
Relative Humidity	10% RH – 90% RH (non-condensing)
Vibration (with SSD)	IEC60068-2-64, random, 2.5G@5~500Hz, 1hr/axis MIL-STD-810H, Method 514.8, Procedure I, Category 4
Shock	MIL-STD-810H, Method 516.8, Procedure I, trucks and semi-trailers=15G (11ms)

Ordering Information

Mode Number	RMC-A3132P RMC-A3132P-yyy-zz (yyy=M12X=M12 interface, yyy = Empty=RJ-45 interface; zz=A8=Intel Atom® x7835RE, zz=A4=Intel Atom® x7433RE) RMC-A3132-D25-M12X RMC-A3132-D25-M12X-zz (zz=A8=Intel Atom® x7835RE, zz=N4=Intel® Processor N150) RMC-A3132-D25 RMC-A3132-D25-zz (zz=N4=Intel® Processor N150)
Description	RMC-A3132P Intel Atom® x7000RE 4-Port PoE M12/RJ-45 DIN rail Rugged Edge Computer RMC-A3132-D25-M12X Intel Atom® x7000RE Dual 2.5GbE M12 DIN rail Rugged Edge Computer (BBU for Option) RMC-A3132-D25 Intel® N-series Processor Dual 2.5GbE RJ-45 Fanless Edge Computer (BBU for Option)
